Job completed for Frank&Sue B.

Completion date: December 27, 2018

Location: Indianapolis, IN

Solutions provided:

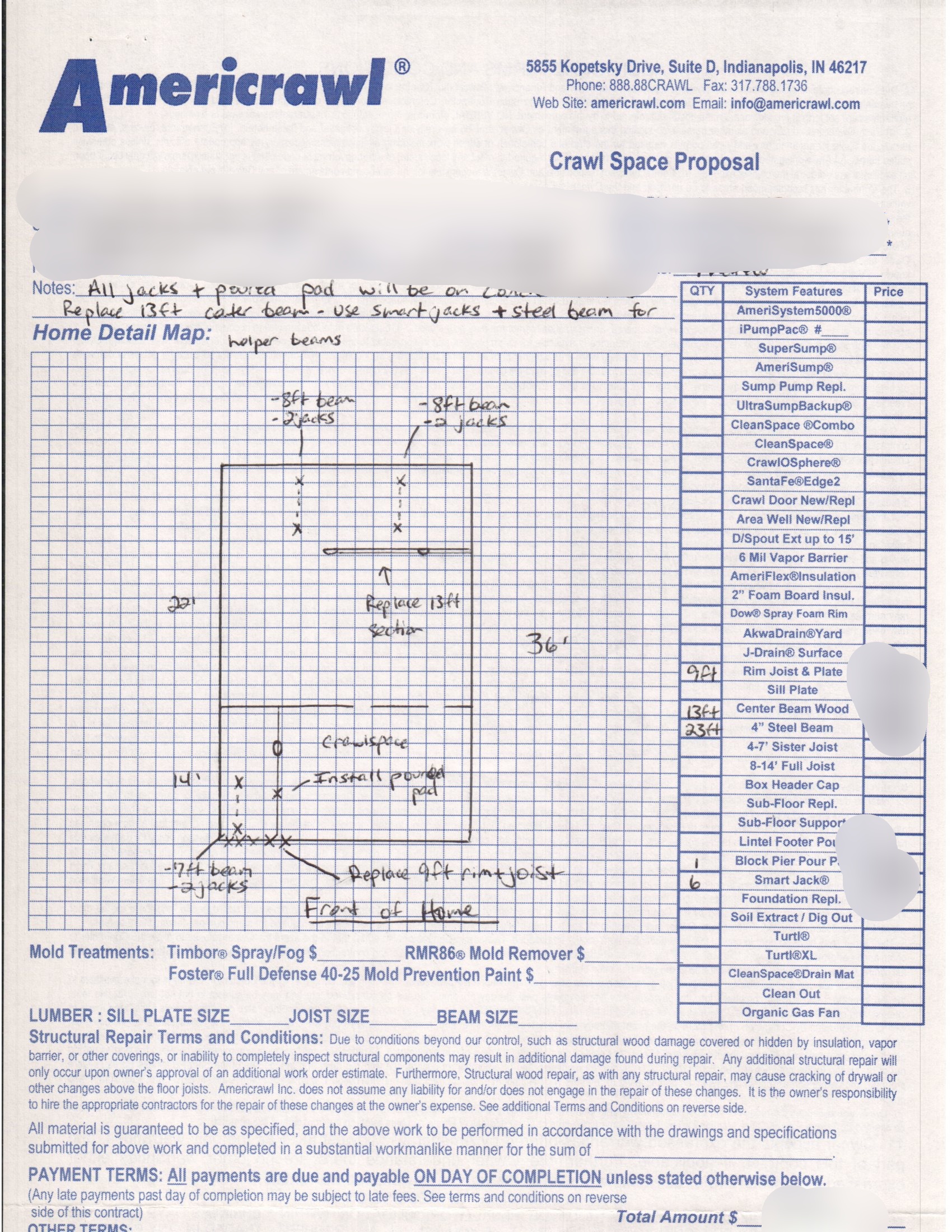

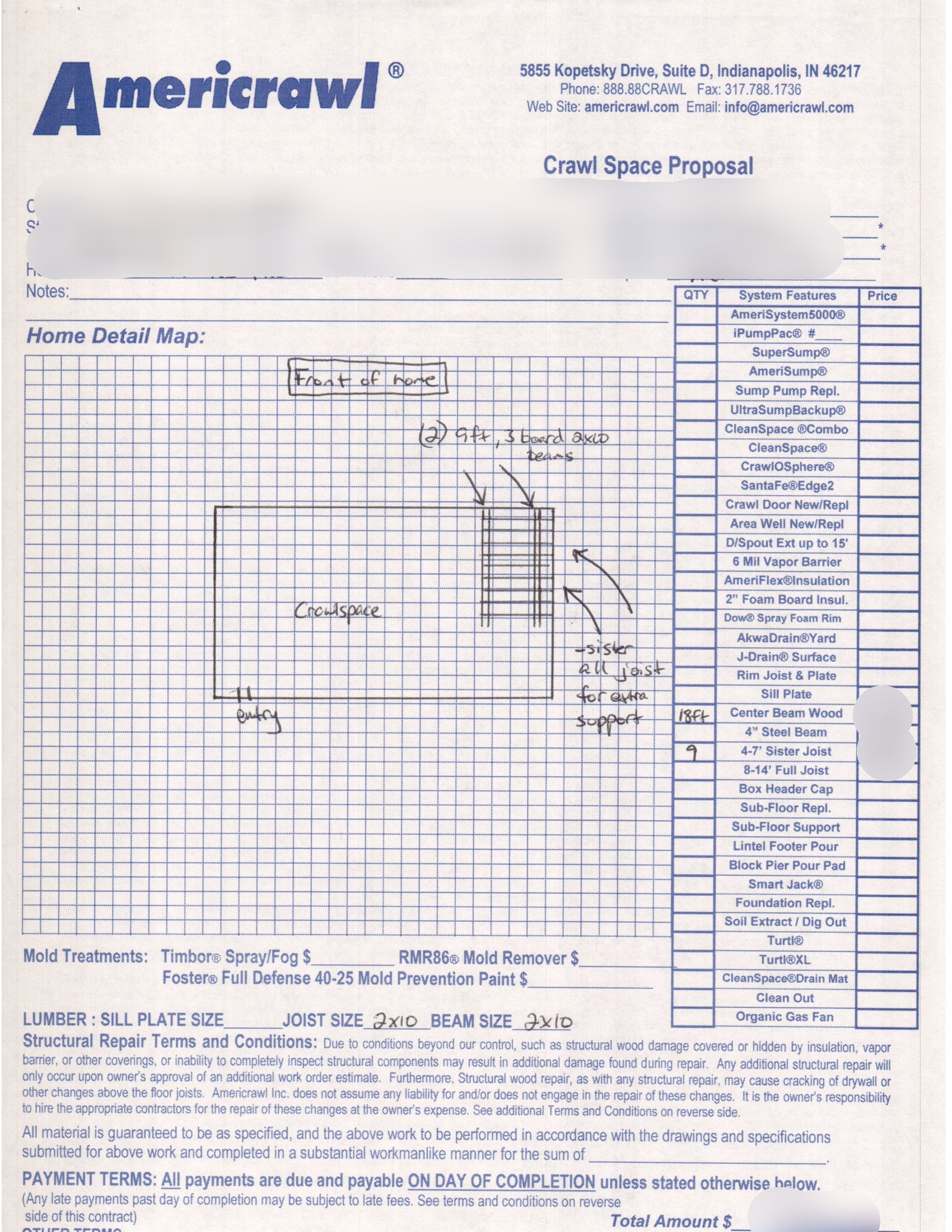

Our experienced crew installed a job that includes multiple structural repairs and reinforcements to restore proper support and stability to the home’s floor system. An 18-foot section of the center beam is replaced, along with an additional 13-foot center beam replacement, to address compromised or deteriorated structural members. Nine floor joists are sistered to reinforce weakened joists and improve load-bearing capacity. In addition, approximately 9 feet of rim joist and sill plate are repaired or replaced to restore structural integrity at the perimeter. A 23-foot steel I-beam is installed to provide enhanced floor support and is set on one poured concrete pad beneath the center beam to ensure a stable bearing surface. The I-beam is further supported by six SmartJacks, which are properly positioned and adjusted to evenly distribute loads and stabilize the floor system. Collectively, this work corrects structural deficiencies, reduces floor deflection, and provides long-term reinforcement to the home’s support structure.

Team members on this project:

Daniel, Kevin
